External Water Reservoir

The original Boler uses a 10 gallon water reservoir located either under the dinette floor under the trailer or in the drivers side dinette seat.  Due to age these reservoirs are often brittle, cracked, broken or just plain gross with 40 years of accumulated crud.

How would you like a water reservoir that is inexpensive, you can clean, is easy to refill, and you can even put a block of ice in to keep the water cool?  The following is the solution I use on my Boler, it takes a little bit of work, but is easy enough to be build by most using parts from your local home improvement store.

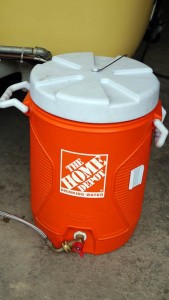

The reservoir I use is a commonly available 5 gallon sports water cooler, any water container could be used but my experience is that most plastic container make the water tasting “yuck” where water left in this type of container seems to taste much better.

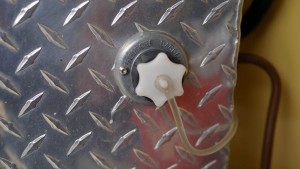

I am going to start the instructions for this modification by starting with the water inlet into the trailer, this is probably the biggest modification.  since the original water reservoir was in the trailer, the inlet has to be moved so it can draw the water from the outside, this may sound complicated but it is actually quite simple. Because the water reservoir is now on the outside you need to install an outside water inlet into the trailer similar to the street water inlet is currently on the drivers side.  Mount the inlet in an appropriate location on your trailer and connect the line inside the trailer either to the inlet on you original hand pump, or if you have upgraded to an electric water pump then connect it to the inlet of the pump.

Water 5

With the inside plumbing finished lets look at the outside, to draw water out of the reservoir it can be as simple as placing a hose from your newly installed fitting into the reservoir, although this will work we want to make sure the water cannot be contaminated from outside sources. The simplest method would be to drill a hole through the lid the diameter of the inlet tube, inset the tube through the hole and you are ready to go.  For those looking for something a little more durable, a better option is to use some commonly available home plumbing fittings to replace the original spout with a valve which draws the water from the bottom of the container.

Parts Needed

Cooler

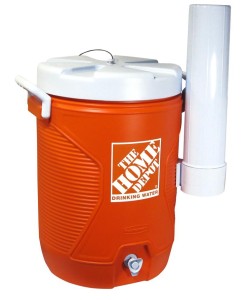

5 Gallon insulated water cooler

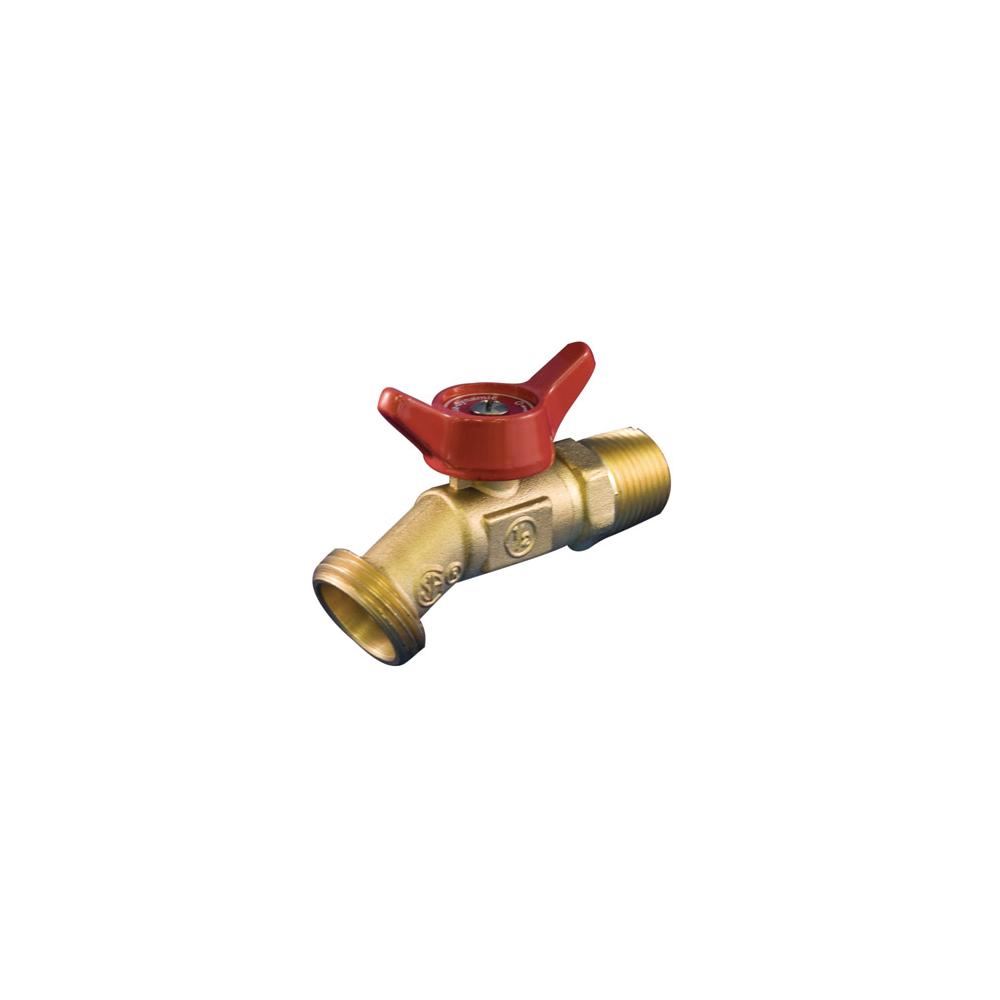

1-2 in Ball Valve

1/2″ water valve

1-2 to 3-4 Bushing

3/4″ to 1/2″ Pipe Thread Adapter

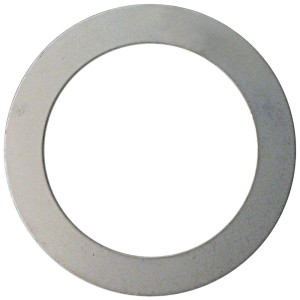

3-4 Washer

3/4″ Washer, this fits over the 1/2″NPT of the valve to seal the rubber gasket against the cooler

Washing Machine Hose

Washing Machine Supply Hose

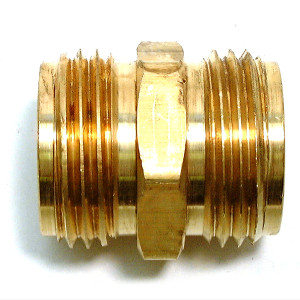

Male Hose to Hose

Male to Male Hose Adapter

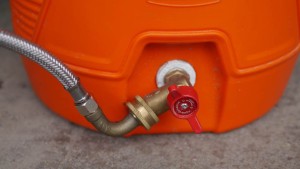

Remove the spigot from the bottom of the container, mine was held on with a plastic nut on the inside, keep all these parts as you will need the rubber gasket later.  Place the large washer over the pipe thread on the valve and insert into hole in container where original spigot was.  Place the rubber seal that was originally behind the spigot and screw the 3/4″-1/2″ plastic bushing onto the valve, (spacers may need to be added between the bushing and the container so the valve is held tight and seals to the container) Make sure any items used are safe for drinking water use.  Once the valve is tight fill the container with water and test for any leaks, some adjustment shimming and “playing” may be needed to create a good seal.

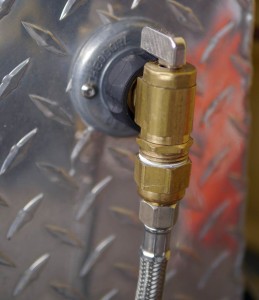

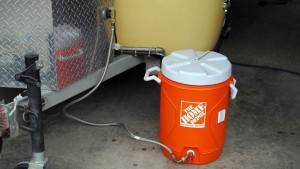

To connect the reservoir to the water system simply connect the washing machine hose from the valve on the water reservoir, then using the male to male hose adapter connect, to the inlet you installed on the side of the trailer. Open the valve and loosen the lid slightly to allow air into the reservoir, if you don’t a vacuum will be created as water is drawn and will reduce or prevent flow.

You will appreciate the ease and convenience of this modification, when you run out of water you can easily refill the reservoir, no need to move the trailer, just disconnect the reservoir, take to the tap and fill it up.  If the water in the campground is questionable you can refill with 5 gallon containers of bottled water.  One of the best features in on a hot day you can add a block of ice and enjoy cold water.

With the large lid on the reservoir it is easy to thoroughly clean the inside regularly, that plastic flavoured water becomes a thing of the past.

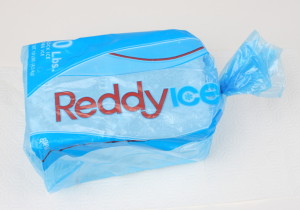

Block Ice

Water 1

Water 2

Water 3

Water 4
